MAKING OF: Viterbo Sotterranea

English version

24/03/2017

Siamo giunti al termine della preparazione dei brani estratti dalla Viterbo Sotterranea: dopo la sonificazione, Stefano Pontani, alla chitarra ed ai loops, procede ad arrangiare i brani, seguendo le regole della EMusic. Infine Marco Guidolotti, come special guest, fornisce con il suo sax una interpretazione più “artistica” dei suoni della Terra, interagendo con gli stessi, in un dialogo senza rete.

We are arriving at the end of the making of the tracks extracted from Viterbo Underground: after the sonification, Stefano Pontani, playing guitar and loops, is proceeding to arrange the pieces, by following the EMusic’s rules. Finally, Marco Guidolotti, as special guest, provides with his sax a more “artistic” interpretation of the sounds of the Earth, by interacting with them, in a completely free dialogue.



22/03/2017

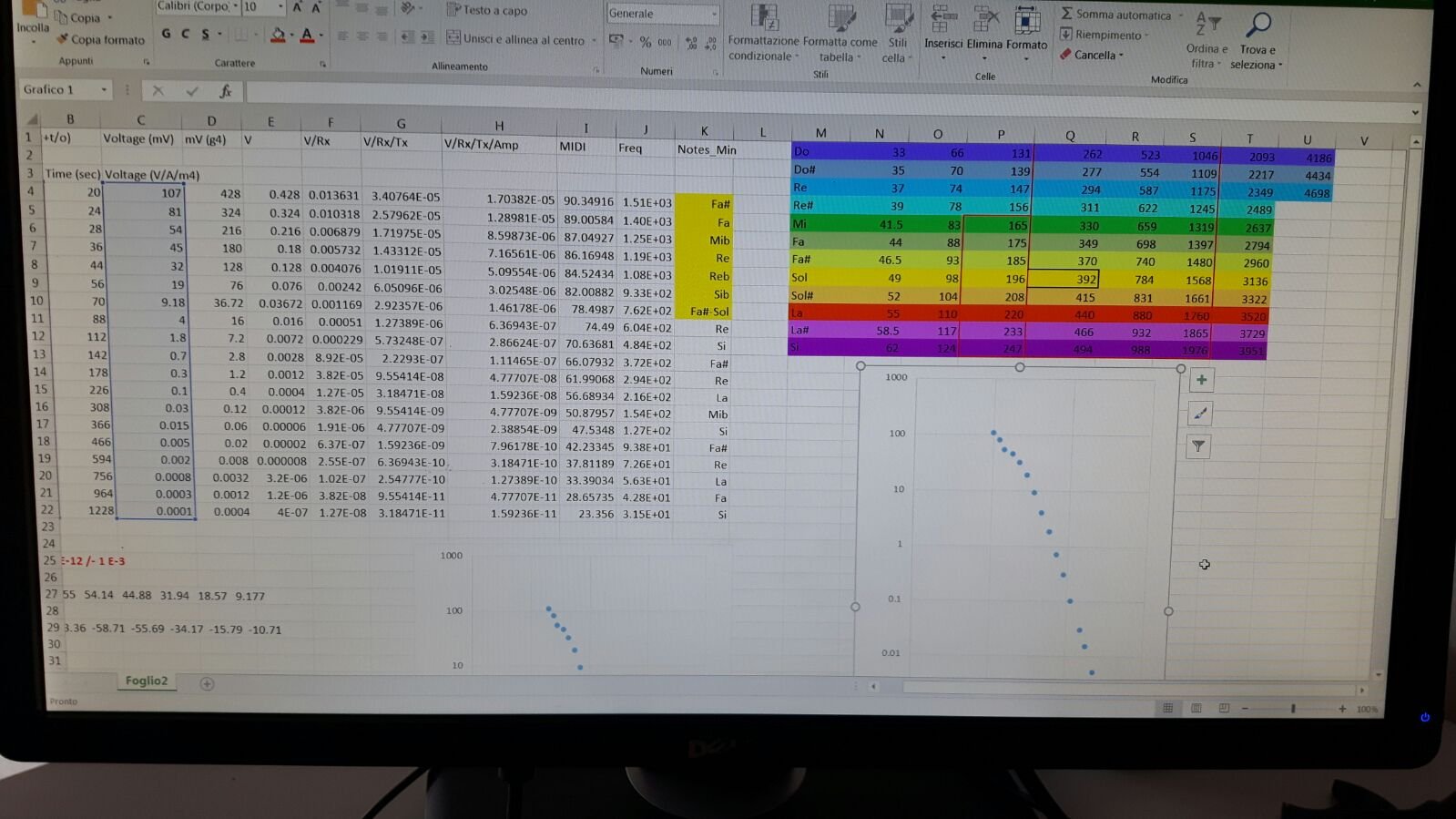

Alle prese con la sonificazione dei dati TEM… Il passo dalla Geofisica alla Musica è davvero breve con Antonio Menghini! Struggling with the sonification of TEM data…the passage from Geophysics to Music is really short with Antonio Menghini!

20/03/2017

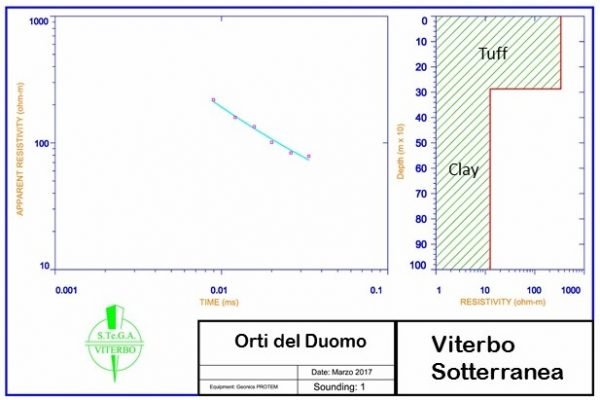

Come spesso accade quando si ha a che fare con le Scienze della Terra, abbiamo dovuto riconsiderare le nostre ipotesi iniziali. Infatti il modello geologico che ci eravamo immaginati è risultato differente da quello ricavato dal sondaggio TEM: l’inversione dei dati geofisici, operata da Stefano Floris e Matteo Pelorosso di S.Te.G.A, ha messo in luce la presenza di due soli strati e non tre. Il primo presenta un’elevata resistività (circa 400 ohm-m) e spessore di 28 m. Sulla base di dati stratigrafici raccolti nelle zone limitrofe, oltre al rilevamento geologico che si può condurre sfruttando proprio i cunicoli della Viterbo Sotterranea e la cartografia ufficiale, è ovvio interpretare questo primo strato come il “Tufo rosso a scorie nere” (l’Ignimbrite tefritico-fonolitica” emessa dal Vulcano di Vico circa 150-200 mila anni fa). Al di sotto troviamo una formazione decisamente conduttiva (circa 10 ohm-m) che non può essere per le caratteristiche elettriche il “Peperino”, come in un primo tempo ci si aspettava, bensì le Argille Plioceniche (depositatesi su fondali oceanici profondi, tra 1 e 2 milioni di anni fa). Quindi in questa zona di Viterbo le colate ignimbritiche del “Peperino” non sono mai arrivate (o potrebbero essere state completamente erose), come d’altronde è confermato dall’assenza di affioramenti nell’area nord-occidentale della città. Il contatto Tufo-Argilla assume una rilevanza particolare anche per l’idrogeologia, visto che il Tufo ospita una falda freatica sostenuta proprio dale Argille impermeabili. Quindi la rete caveale, laddove più incisa, potrebbe intercettare acque sotterranee.

As it often happens when you are dealing with Geosciences, we had to reconsider our initial hypothesis. In fact, the geologic model that we had imaged came out different from that we recovered from the TEM sounding: the inversion of the geophysical data, performed by Stefano Floris e Matteo Pelorosso from S.Te.G.A, showed the presence of only two layers, not three. The first one has high resistivity (about 400 ohm-m) and a thickness of 28 m. On the basis of stratigraphic data collected in the surroundings, besides the geological survey that can be carried out by exploiting just the tunnels of Viterbo Sotterranea and the official cartography, it is obvious to interpret this first layer as the “Tufo rosso a scorie nere” (the tephritic-phonolitic Ignimbrite emitted by Vico Volcano, about 150-200.000 years ago). Below we find a definitely more conductive formation (about 10 ohm-m) which cannot be, by considering the electrical features, the “Peperino”, as we expected, but the Pliocenic Clays (deposited on deep ocean floors, between 1 and 2 millions years ago). Hence, in this part of Viterbo, the ignimbritic flows of “Peperino” never arrived (or they could be completely eroded), as indeed it is confirmed by the absence of outcrops in the north-western area of the city. Furthermore, this geologic contact assumes a particular significance also for the hydrogeology, as Tuffs can host a phreatic aquifer that is sustained by the impermeable Clays. Hence, the underground network, where it is more incised, could intercept groundwater.

16/03/2017

Si procede con il sondaggio sul posto. Oggi Stefano Floris e Matteo Pelorosso di S.Te.G.A. hanno eseguito i rilievi dei dati geofisici che saranno poi elaborati e sonificati da Antonio Menghini e Stefano Pontani.

We are proceeding with the field data acquisition. Today Stefano Floris and Matteo Pelorosso from S.Te.G.A. have performed the geophysical survey. The data will be processed and sonified by Antonio Menghini and Stefano Pontani

15/03/2017

Per realizzare il brano “I Suoni della Viterbo Sotterranea” abbiamo dovuto affrontare da subito un problema tecnico: a causa della presenza di infrastrutture subito sopra il percorso ipogeo, che avrebbero disturbato l’acquisizione dei dati TEM, dai quali poi svilupperemo il brano musicale, siamo dovuti andare alla ricerca di un’area alternativa. Gli Orti del Duomo, a poche centinaia di metri di distanza, fanno proprio al caso nostro, in quanto abbiamo a disposizione spazi liberi a sufficienza per realizzare il sondaggio, con il vantaggio di avere la medesima successione stratigrafica della Viterbo Sotterranea: Tufo rosso-Peperino-Argilla.

To compose the piece “I Suoni della Viterbo Sotterranea” we had firstly to solve a technical issue: due to the presence of infrastructures above the underground path, that would have affected the acquisition of TEM data, from which we’ll compose the musical track, we had to find an alternative site. The Orti del Duomo area, located a few hundred meters far, fit very well with our needs, since we have got available space enough to perform the sounding, with the advantage to get the same stratigraphic succession of Viterbo Sotterranea: Tufo rosso (Tephritic-phonolitic ignimbrite)-Peperino (Quarzolatitic ignimbrite)-Argilla (Clay).

14/03/2017

I Suoni della Viterbo Sotterranea
siamo stati invitati a comporre una brano di EMusic che descriverà le formazioni geologiche nelle quali si sviluppa il bellissimo circuito sotterraneo che parte da Piazza della Morte…la cosa più affascinante è che NESSUNO di noi ha la più pallida idea di quale sarà il prodotto finale: è la Terra che detterà le sue leggi e noi dovremo solo interpretarla.
Rimanete sintonizzati!

The Sounds of Viterbo Underground
We have been invited to compose an EMusic track that will describe the geological formations into which the wonderful underground journey develops, starting from Piazza della Morte…the most fascinating issue is that NONE of us has the faintest idea about what the final outcome will be: the Earth will lay down the law and we will have only to interpret her.
Stay tuned!
